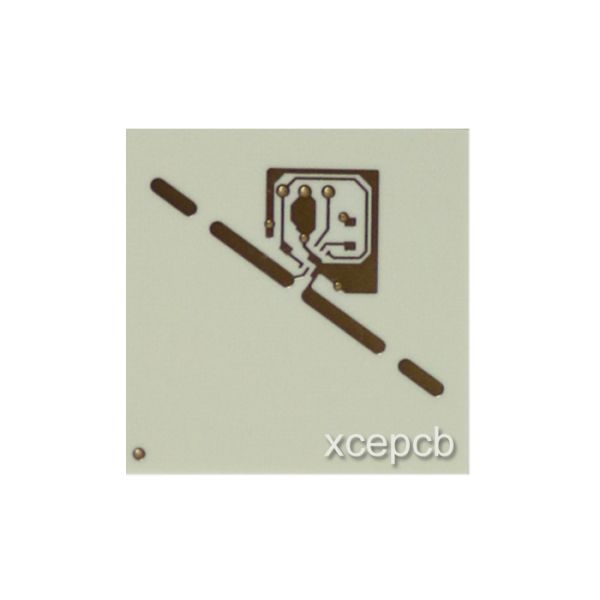

Rogers 4003C High Frequency PCB With Gold Plating Surface Finish
Specification:
| Materia raw | Rogers RO4003c | Board THK | 0.2mm |
| Layer | 2 | Solder mask | white |
| Surface finish | gold plated | Line space | 0.1mm |
| Copper THK | 1OZ | Line width | 0.1mm |
Quick detail:
Model:XCEH
Board size:5*6cm
Origin: China
Brand:XCE
Parameter
| XCE PCB technical specifications |
| Material | F4B |
| Layer No. | 6 |
| Min board thickness | 2 layer0.2mm 4 layer0.4mm 6 layer 0.6mm 8 layer 0.8mm 10 layer 1.0mm |
| Max panel size | 508*610mm |
| Board thickness tolerance | T≥0.8mm±8%.,T<0.8mm±5% |
| Wall hole copper thickness | >0.025mm(1mil) |
| Finished hole | 0.2mm-6.3mm |
| Min line width | 4mil/4mil(0.1/0.1mm) |
| Min bonding pad space | 0.1mm(4mil) |
| PTH aperture tolerance | ±0.075mm(3mil) |
| NPTH aperture tolerance | ±0.05mm(2mil) |
| Hole site deviation | ±0.05mm(2mil) |
| Profile tolerance | ±0.10mm(4mil) |
| Board bend&warp | ≤0.7% |
| Insulation resistance | >1012Ωnormal |
| Through-hole resistance | <300Ωnormal |
| Electric strength | >1.3kv/mm |
| Current breakdown | 10A |
| Peel strength | 1.4N/mm |
| Soldmask regidity | >6H |
| Thermal stress | 288℃20Sec |
| Testing voltage | 50-300V |
| Min buried blind via | 0.2mm(8mil) |
| Outer copper thickness | 1oz-5oz |
| Inner cooper thickness | 1/2 oz-4oz |
| Aspect ratio | 8:1 |
| SMT min green oil width | 0.08mm |
| Min green oil open window | 0.05mm |
| Insulation layer thickless | 0.075mm-5mm |
| Taphole aperture | 0.2mm-0.6mm |
| Special technology | Indepedance,Blind buried via,thick gold,aluminum PCB |
| Surface finish | HASL,Lead free HASL,Immersion Gold, Immersion Tin, Immersion Silver,OSP ,ENIG ,Golden finger,Blue glue,Gold plating |
Application:
Mobile communication products, amplifier, low noise amplifier,GSM, CDMA,
3G smart antenna,splitters, diplexers, filters, couplers and other passive components
Advantage:
OEM/ODM services are welcome
Heavy copper PCB, Heavy gold PCB, Blind & Buried PCB Board, FPC Flex-Rigid,HDI PCB, Impedance
control panel High layer count PCB, are available.
Factory direct wholesale price
Replying with price within 1 hour
Shipping within 24 hours
Certificate: ROHS, UL,SGS,9001-2000, ISO14001, SGS Lead-Free
